Shore Solutions
Smart Marine Charging & Swapping Solution

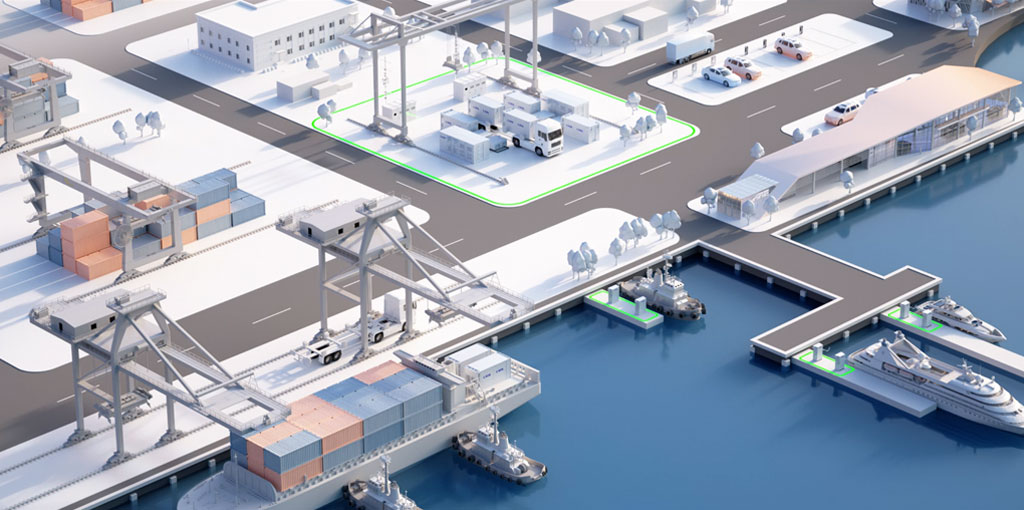

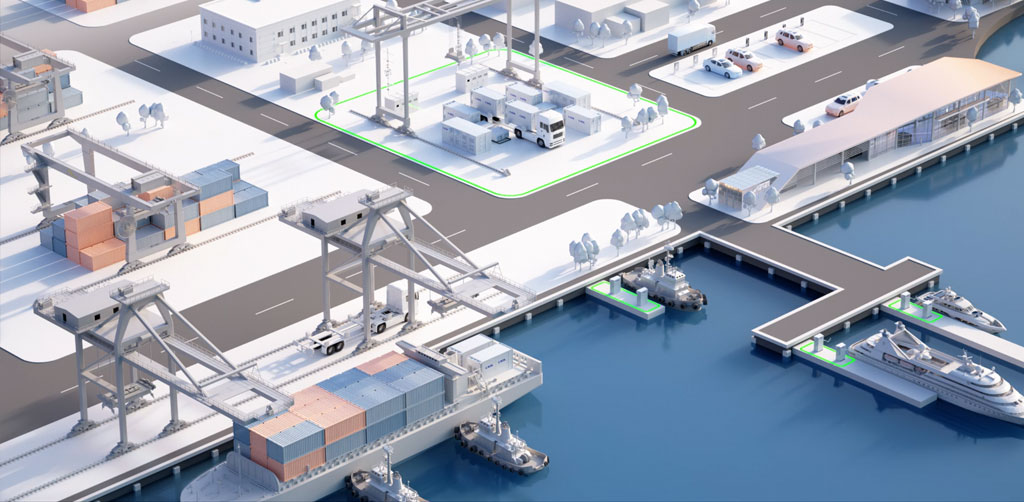

The CAEV Smart Marine Charging and Swapping System is composed of dock shore cranes, dredger cranes (dock configuration), swap station reach stackers, AGV carriers and electric container trucks, as well as MW-grade high-power charging equipment, containerized power supply units, power distribution systems, station monitoring systems and cloud platforms. This solution applies the ship-battery decoupling mechanism to achieve quick energy replenishment for electric ships, fully addressing the endurance concern.
-
High-Voltage & High Power Charging System
-
Marine DC Charging Pile
-
Integrated Automated Docking System
-
High-Voltage & High Power Charging System
-
Marine DC Charging Pile
-
Integrated Automated Docking System
Charging vs Battery Swapping
-
Charging mode
Direct charging via DC busbars to the on-board battery system
2-10 hours
-
Swapping mode
Containerized battery system detached from vessel and charged at charging station nearby, in parallel with cargo handling
15 minutes
-
Charging mode
Direct charging via DC busbars to the on-board battery system
2-10 hours
-
Swapping mode
Containerized battery system detached from vessel and charged at charging station nearby, in parallel with cargo handling
15 minutes
Products
-

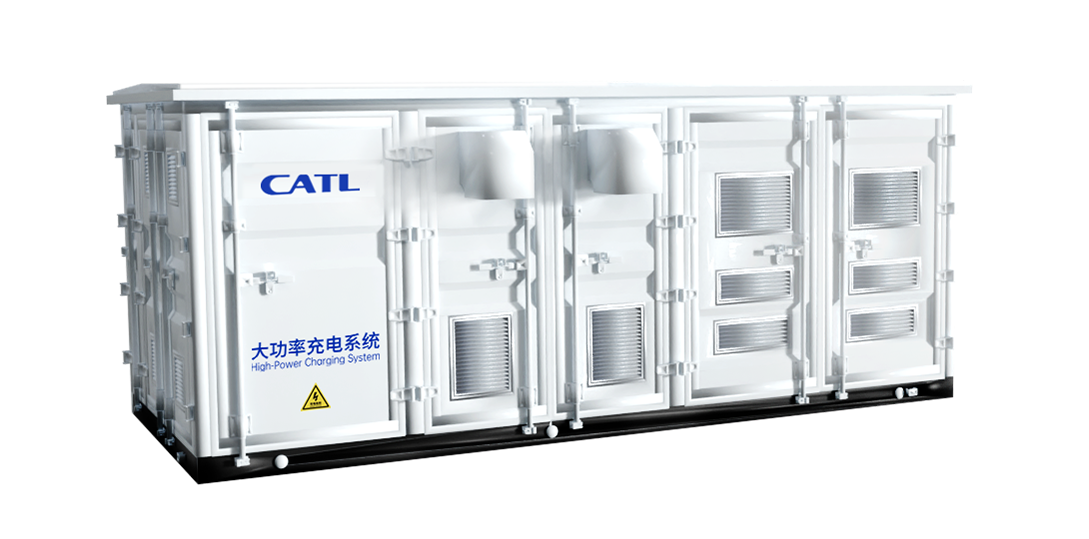

High-Voltage & High Power Charging System
The high-voltage high-power charging system delivers a maximum power output of up to 4MW, supporting dual-scenario charging for both battery compartments and containerized power supplies. Featuring high integration, high reliability, high efficiency and flexible scalability, it provides a one-stop energy replenishment solution for electric vessel.
-
High IntegrationIntegrates conversion and charging functions, saving space in low-voltage cabinets and filter cabinets.
-
High ReliabilityCore modules adopt high-efficiency SiC devices, with an annual failure rate of less than 2%.
-
High EfficiencyModule efficiency exceeds 97%, and the overall system efficiency is greater than 95%.
-
Ease of ExpansionSupports bidirectional interaction with the power grid, enabling the expansion of integrated photovoltaic and energy-storage charging equipment.
-
-

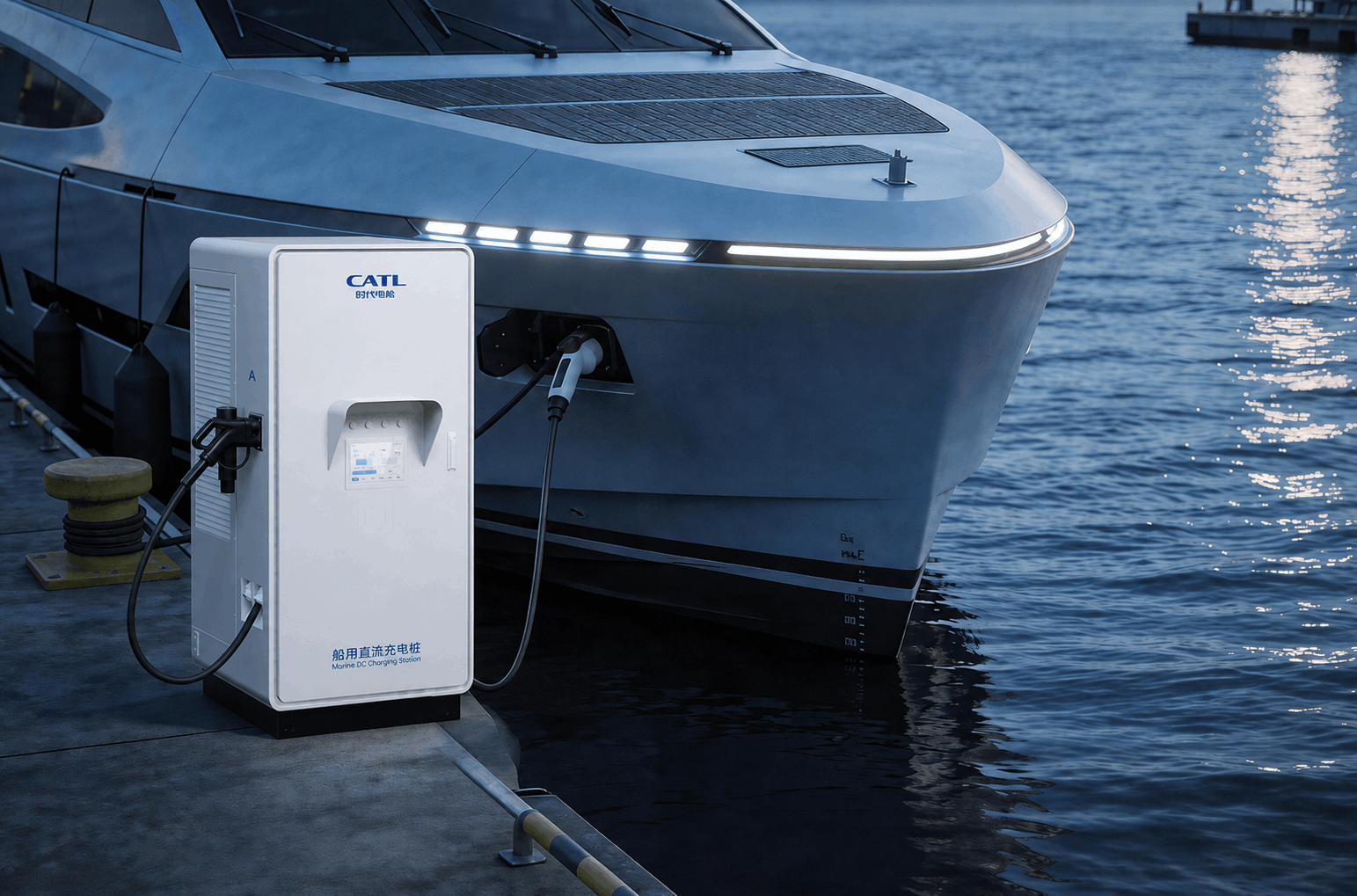

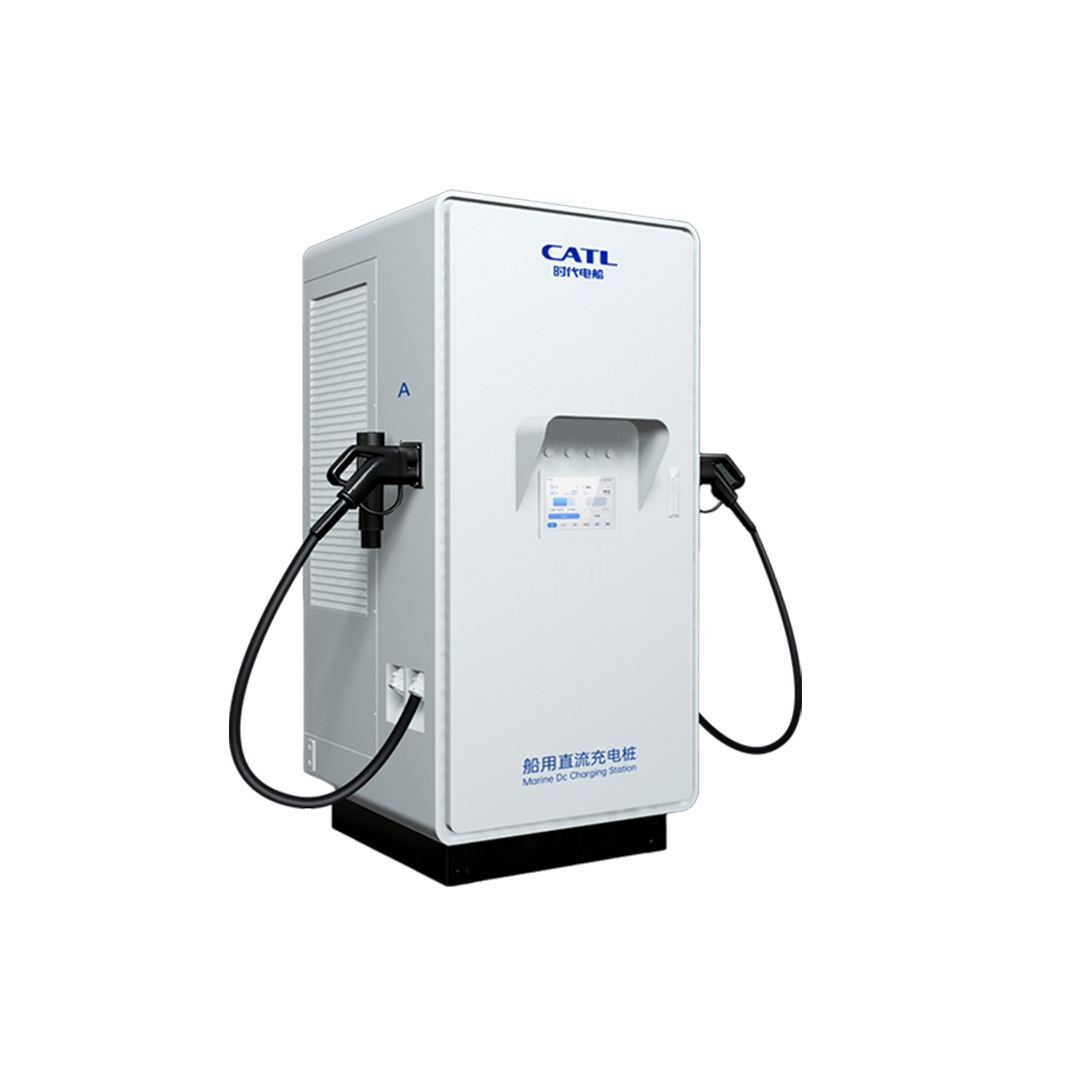

Marine DC Charging Pile
Compliant with EV charging, port shore power and CCS standards, this self-developed PLC-controlled marine DC charger features flexible program upgrades, outstanding safety and high reliability, with strong competitiveness in the marine charging market.
-
Premium ReliabilityAdopts top-tier branded key components, with 304 stainless steel anti-corrosion cabinet, resistant to high temperature, high humidity and high salt mist marine environments.
-
Intelligent ControlBuilt-in self-developed PLC controller, supports remote fault diagnosis and remote program upgrade.
-
Flexible Charging ModesSupports single-gun independent charging and dual-gun concurrent charging.
-
Long Service LifeCore charging module adopts fully insulated glue-filled process, with high protection level and extended service life.
-
-

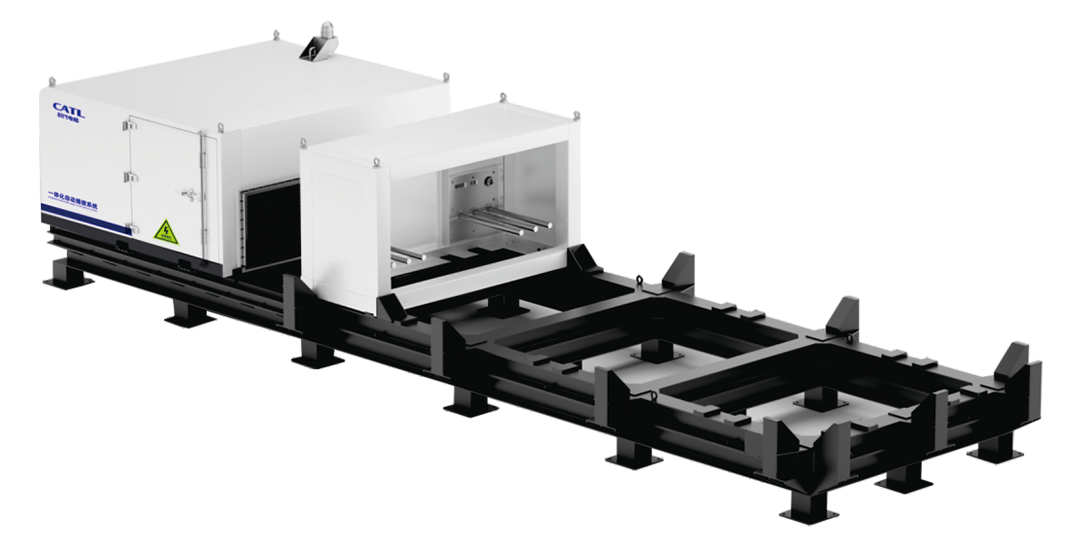

Integrated Automated Docking System
The integrated automatic plug & unplug system enables fully automated operation across detection, identification, positioning, and connection/disconnection processes between the battery container and the high power charging system. It supports intelligent switching between dual charging circuits and features one-touch start functionality.
-
Highly AutomatedAutomatic detection, recognition, positioning, plug and unplug of charging cables and automatic switching of dual charging circuits.
-
High ReliabilitySupports 30,000 plugging and unplugging tests for full-life durability, with a success rate of ≥ 99.8% and positioning accuracy of < 0.3 mm.
-
Industry-Leading Efficiency PerformanceSingle-circuit plug and unplug time: 40 seconds. Dual-circuit plug and unplug time: 120 seconds.
-
Long LifespanLong service life: total cycles > 15,000 times.
-
